| Capacitive Keypad | No mechanical keypad ensures the converter achieves IP67 protection rating allowing direct operation without opening the cover—offering exceptional convenience. |
| Electrode Pre-treatment | Pre-treatment of electrodes prior to installation ensures long-term measurement accuracy. |
| Integrated Pressure Measurement | Integrated pressure measurement enhances operational convenience. |
| Magnetic Circuit Optimization | Optimizes magnetic field performance for more accurate measurements. |

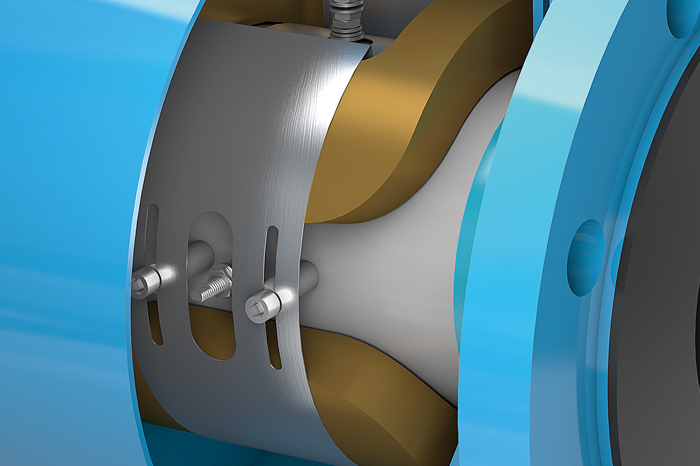

The magnetic circuit has undergone 18 months of optimized design and repeated verification, ensuring more accurate measurements.

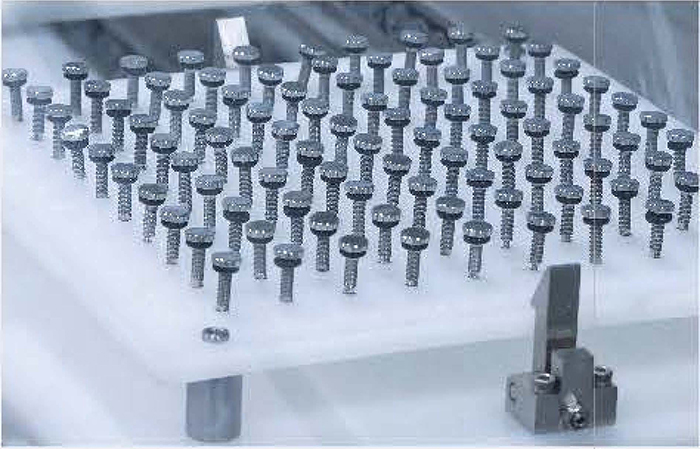

Electrodes undergo pre-treatment before installation, ensuring long-term measurement accuracy.

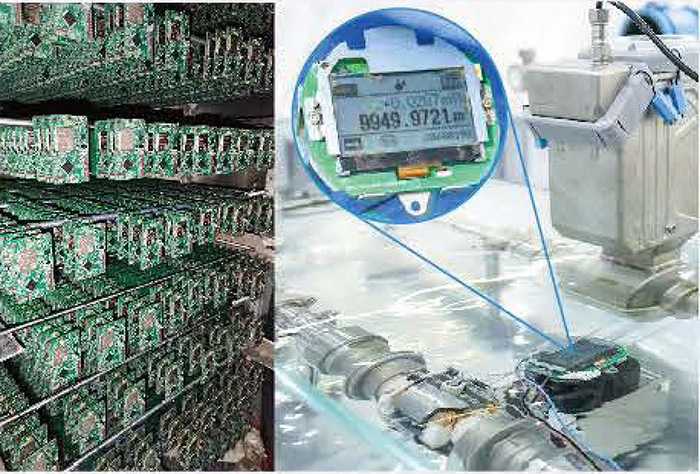

Internal measurement mechanical and electronic components are treated with IP68 waterproofing, ensuring normal and accurate measurements even if the seal leaks.

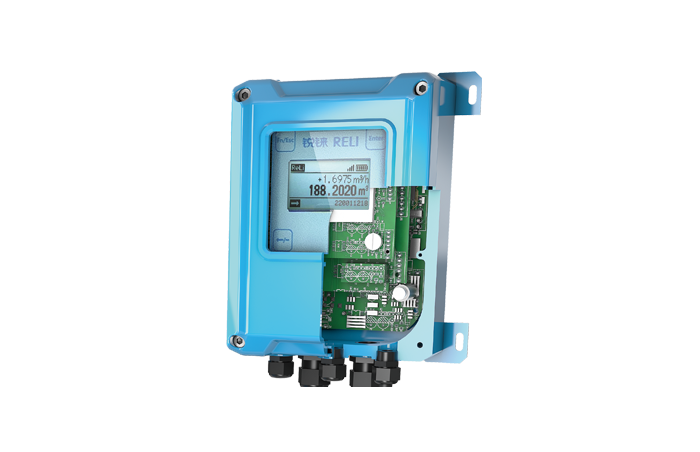

No mechanical keypad ensures the converter achieves an IP67 rating, allowing direct operation without opening the cover—offering great convenience.
| Measured Fluid | Tap water and other conductiveliquids(conductivity > 5 μS/cm) |
| Measured Flow Velocity Range | (0.05 - 10) m/s |
| Nominal Diameter Range | DN25 - DN1800 |
| Measurement Accuracy | ≥0.5 m/s ±0.5%R (optional±0.3R, ±0.2R) |
| ＜0.5 m/s ±2.5 mm/s (optional ±1.5 mm/s, ±1 mm/s) | |
| Maximum Pressure | GB PN6, GB PN10, GB PN16, GB PN25, GB PN40 |
| Special pressure can be order made. | |
| Meter type | Combined meter |
| Cartridge meter | |
| Components Material | Electrode Stainless steel 316L, Hastelloy HB, Hastelloy HC, Titanium, Tantalum |
| Lining Rubber, RELI special lining, PTFE (F4), FEP (F46) | |
| Diversion Pipe Stainless steel 304 | |
| Flanges Carbon steel, Stainless steel (optional) | |
| Sensor Housing Carbon steel, Stainless steel (optional) | |
| Converter Housing Cast aluminum (powder coating) | |
| Power Supply | AC 220 V (AC 85 V - AC 265 V) |
| DC 24 V (DC 18 V - DC 30 V) | |
| DC 24 V (DC 18 V - DC 30 V) + solar powered | |
| Other Technical Parameters | Reverse Flow Measurement Supported |
| Degree of Protection IP67 (for combined meter, not recommended to install in the chamber) IP68 (for sensor of cartridge meter) IP67 (for converter of cartridge meter, not recommended to install in the chamber) | |
| Output (4 - 20) mA current output Frequency output | |
| Wired Communication RS-485 (ModBus protocol) RS-485 (Customized protocol) | |
| Wireless Communication 4G | |
| Alert Types Empty pipe Excitation Error Instantaneous flow rate reaches maximum or minimum Pressure reaches maximum or minimum (for meter with pressure sensor only) | |
| Number of Electrodes (4 - 6) | |
| Electrical interface M20 * 1.5 (2) M16 * 1.5 (3) | |
| Medium Temperature 0 - 60℃(tap water) - 25℃- 160℃(for other conductivefluid) | |
| Ambient Temperature - 25℃- 60℃ | |
| Storage Temperature - 40℃- 60℃ | |
| Humidity 5% - 90% |
